2012 Mac mini Dual-Drive Upgrade

You can check out the Chinese Verison of this blog by go here: {Mac mini 2012 i7 升级256G SSD 双硬盘 Fusion Driver}

Recently, I just got a Mac mini 2012 refurbished i7 Quad Core version.  (when I say recently, I mean couple months ago.) The only performance bottle neck is the HardDrive just been too slow. (1TB HDD). Since the Mac mini 2012 is supporting dual-drive, Figure out upgrade two dual drive with the combinational of SSD. Apple so called, Fusion Drive.

I was following this YouTube Link:  Video Tutorial

Here is the list of Stuff you will need:

SSD:
 I got a Crucial M550 256G Version when it was on sale for $89.99
Crucial M550 Product Page
    Amazon Link: Crucial M550 — Amazon

Mac mini Dual-Drive Kit:
I got it from eBay for $15.99
Here is the link:  Mac mini Dual-Drive Kit

Tool Set:
I got it from homeDepot for $3.88
Here is the link: Tool Set

Total Cost:  $109.86
Total Hour: 2 Hrs

Macmini-HardDrive-Upgrade

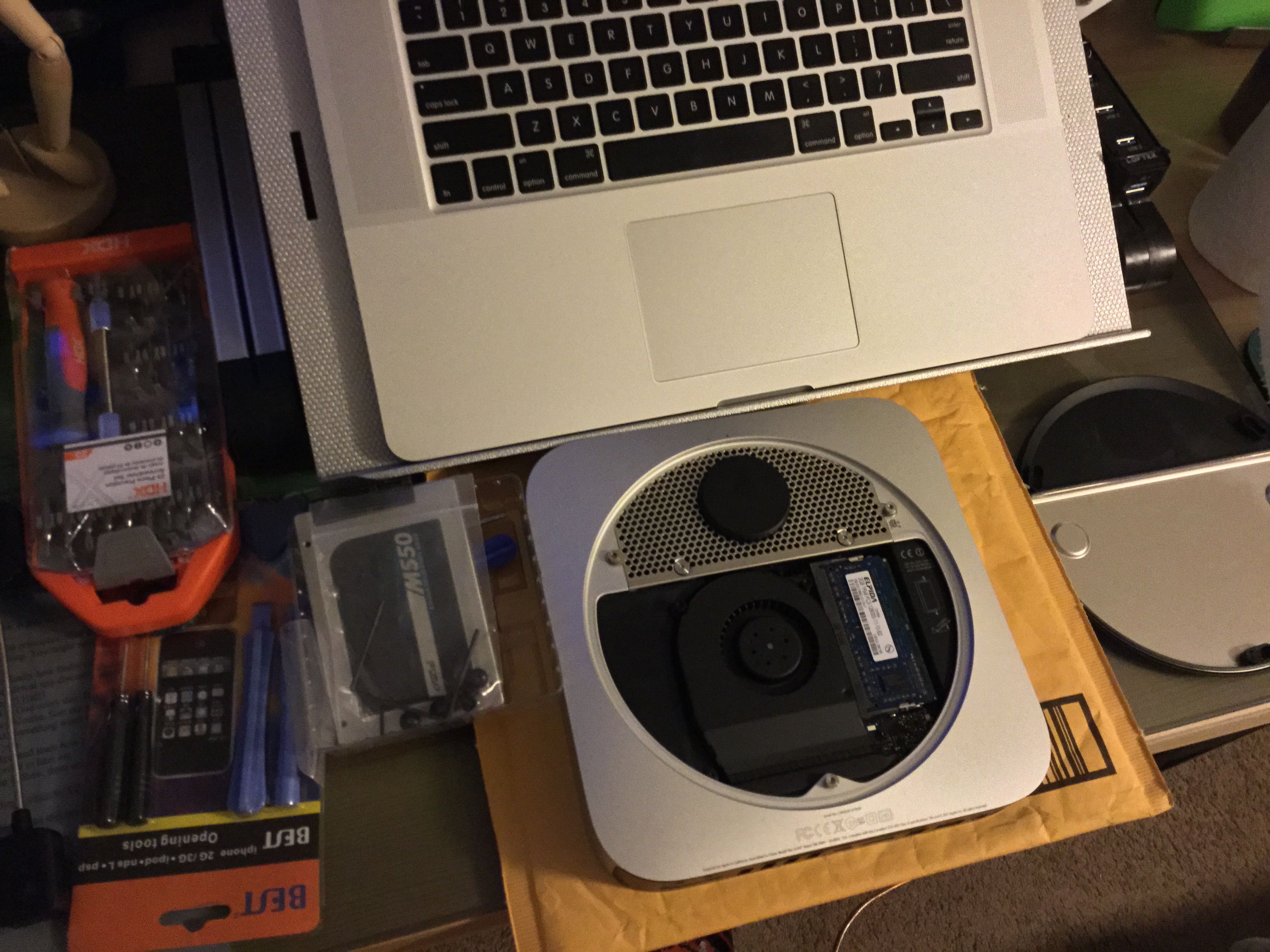

Here is everything I got



IMG_0046

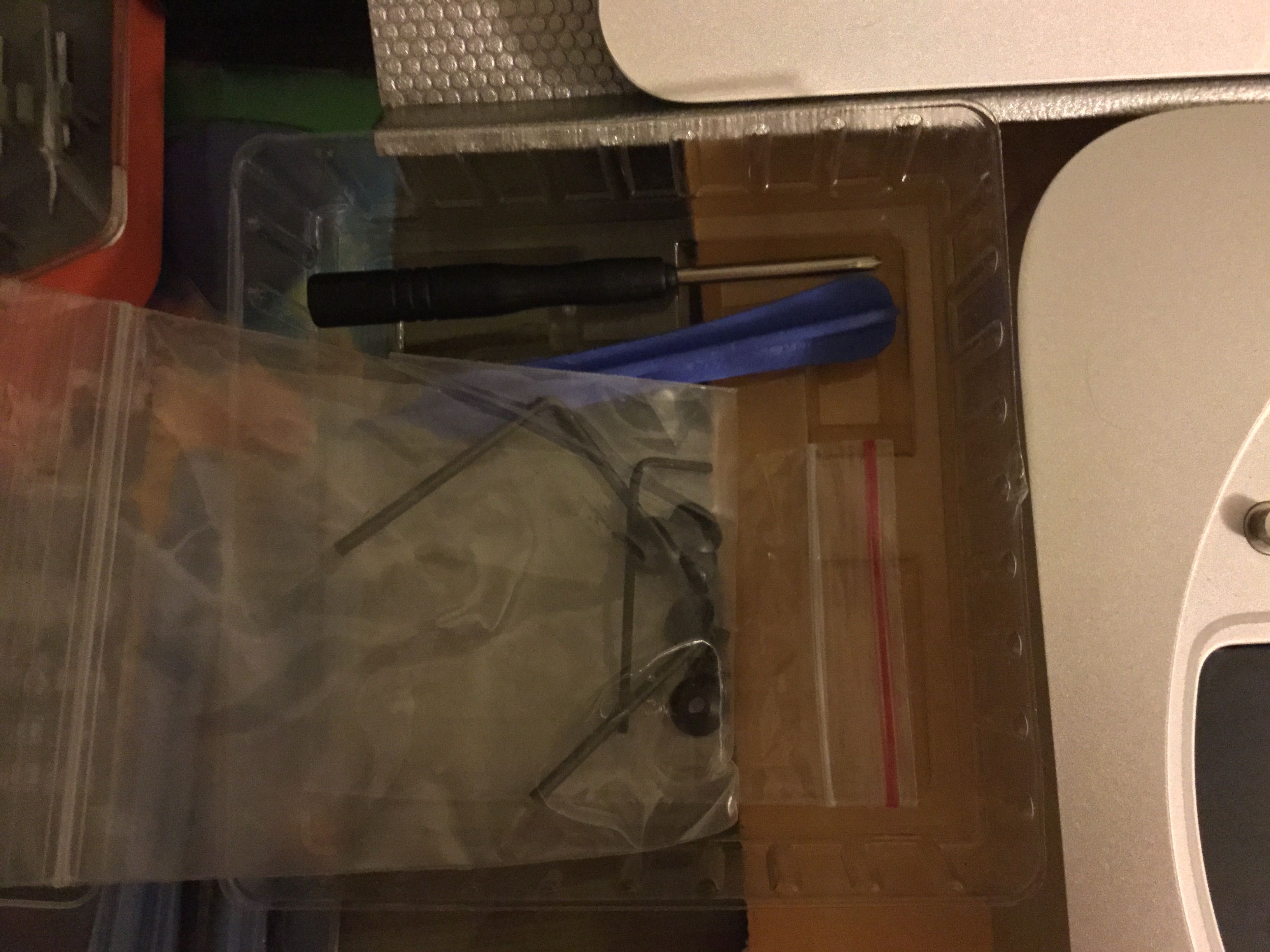

Here is the Tool I got (Dual-Drive Kit)



IMG_0047

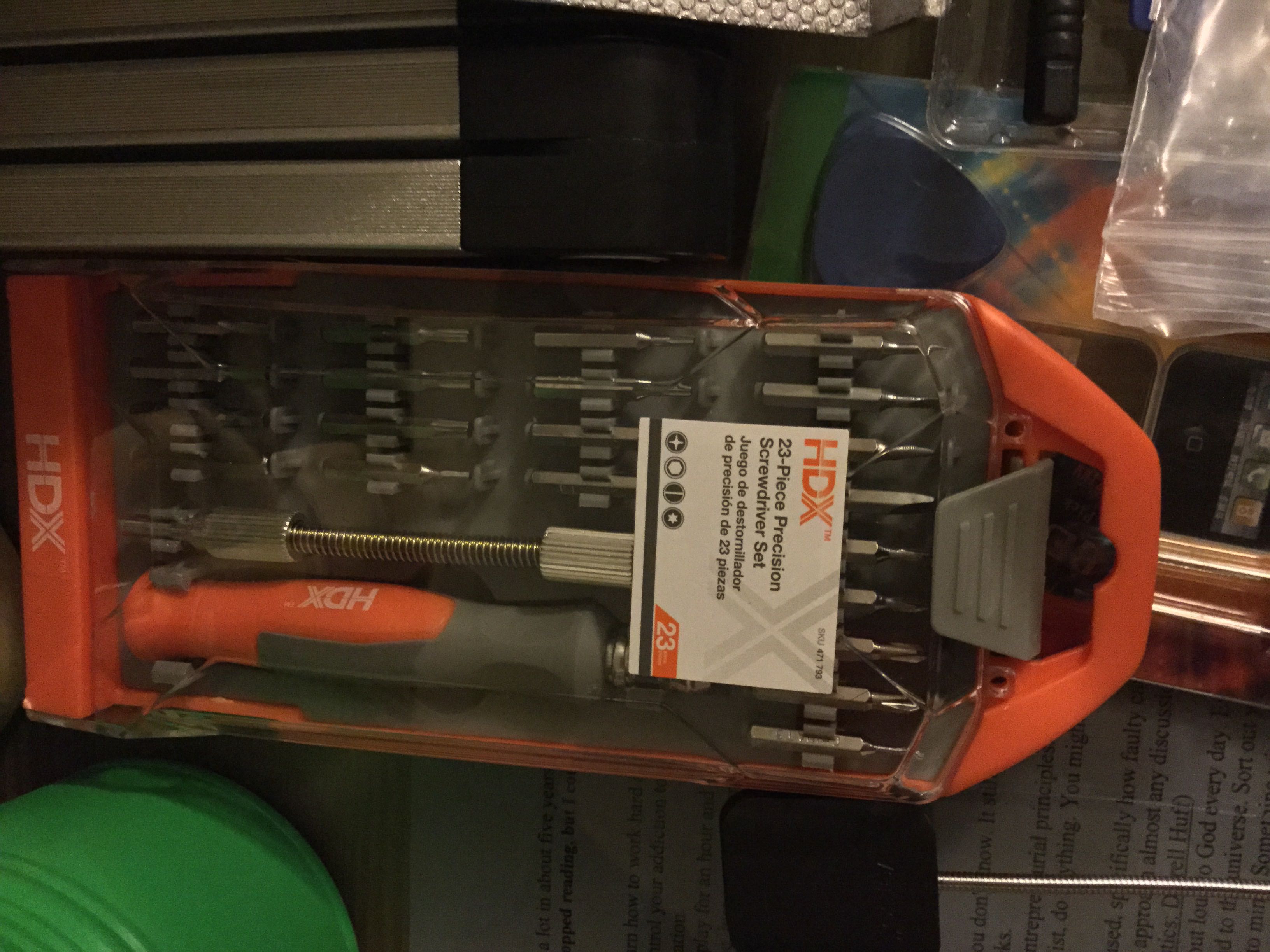

Tool set got from HomeDepot



IMG_0045

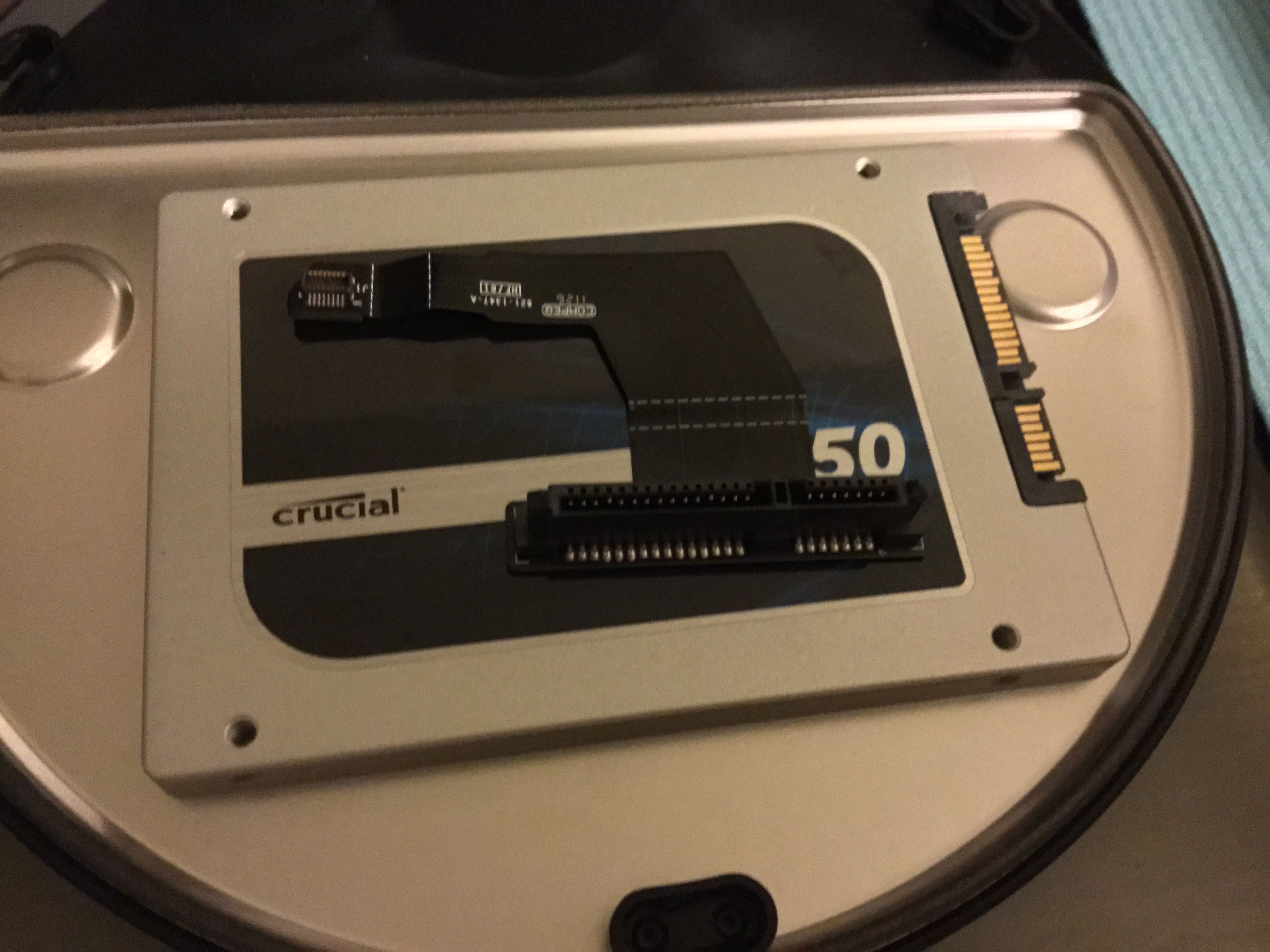

A 256G SSD Crucial M550 along with extra SATA connector



IMG_0044
Crucial M550 — Got it from Amazon when it was on sale for $89.99



IMG_0048

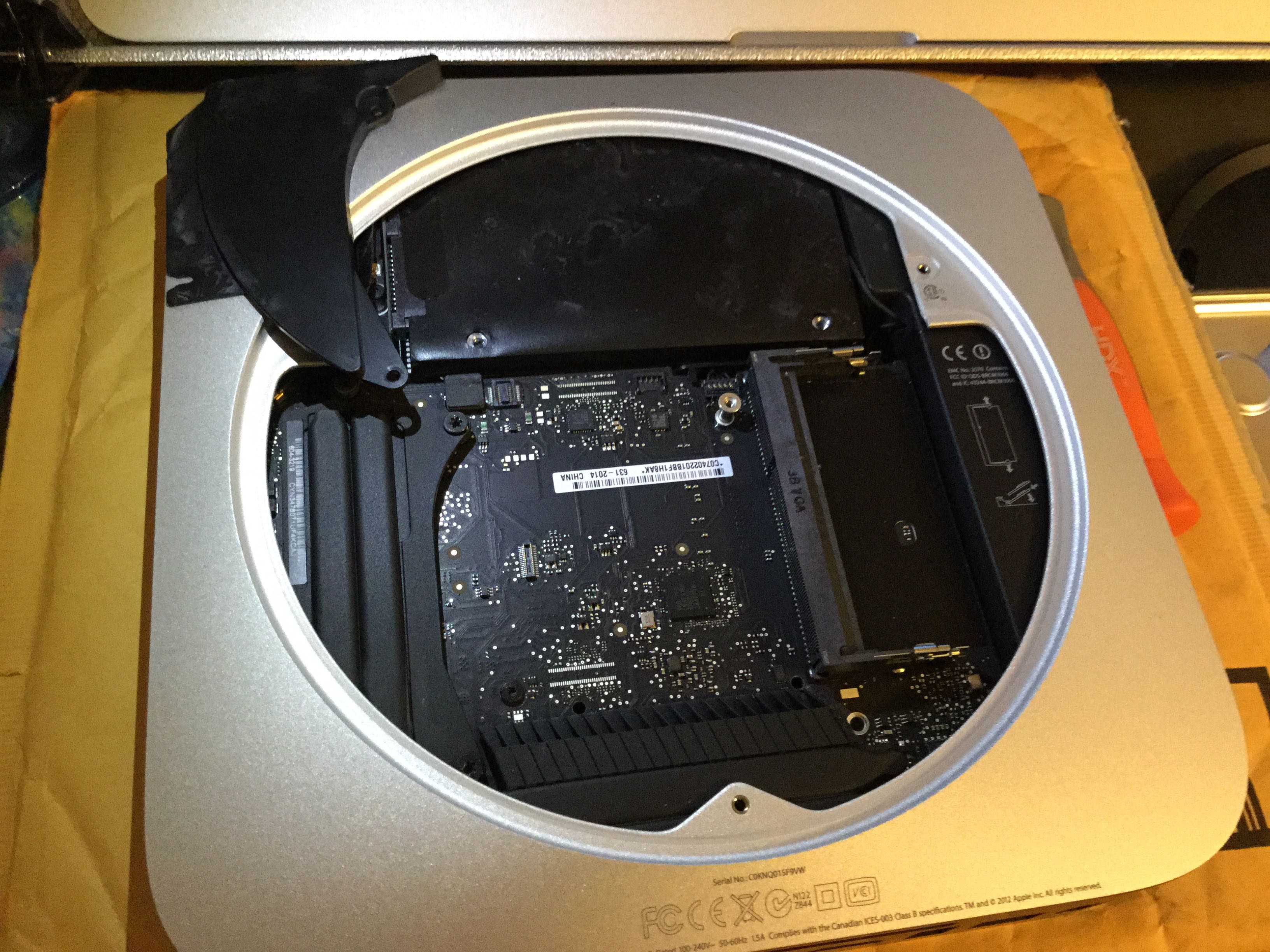

Take out the Fan



IMG_0049

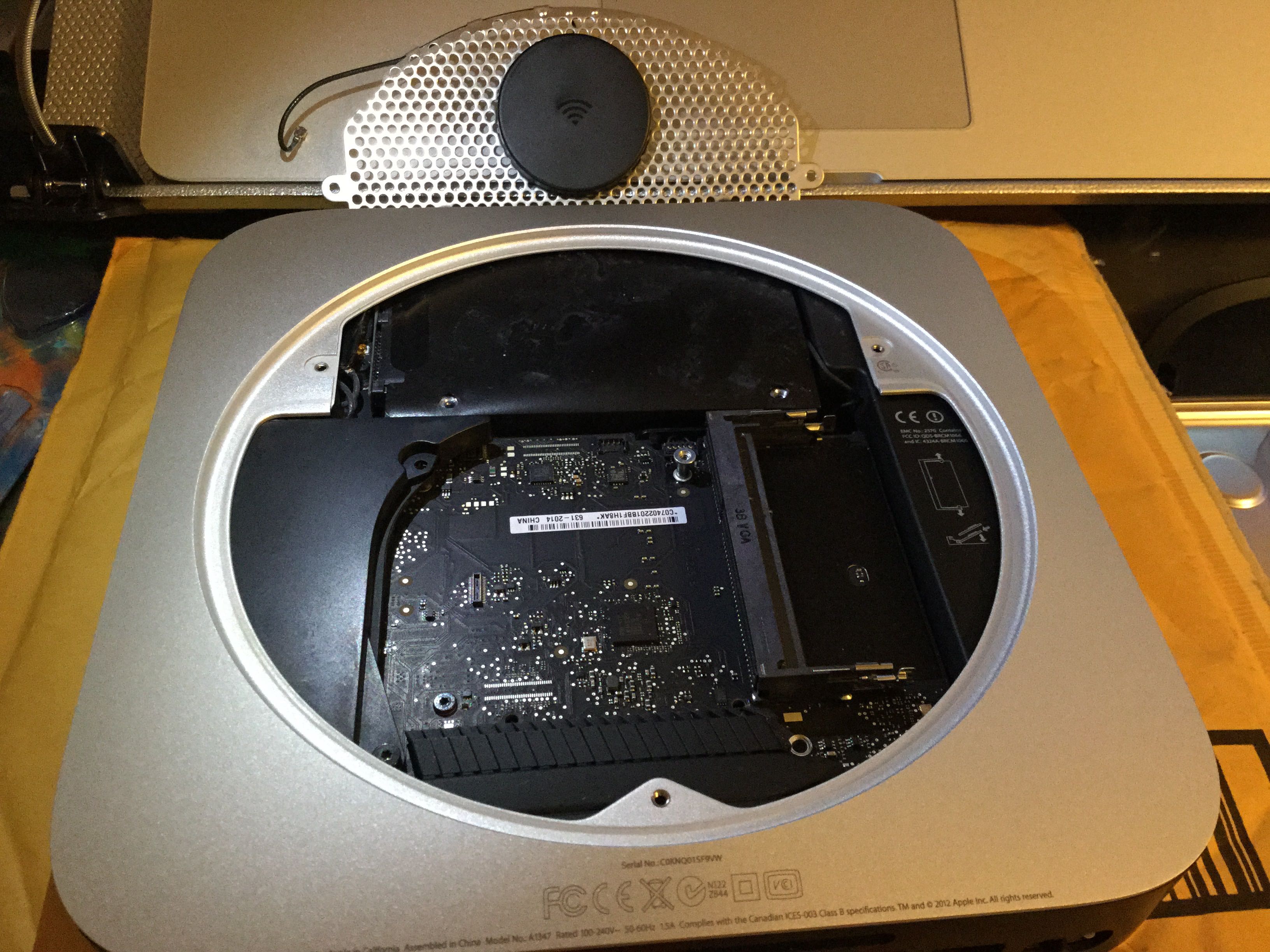

Disconnected the Antenna



IMG_0050
Removed a plastic holder from the side



IMG_0052
Slide out the Main-Logic board
IMG_0051

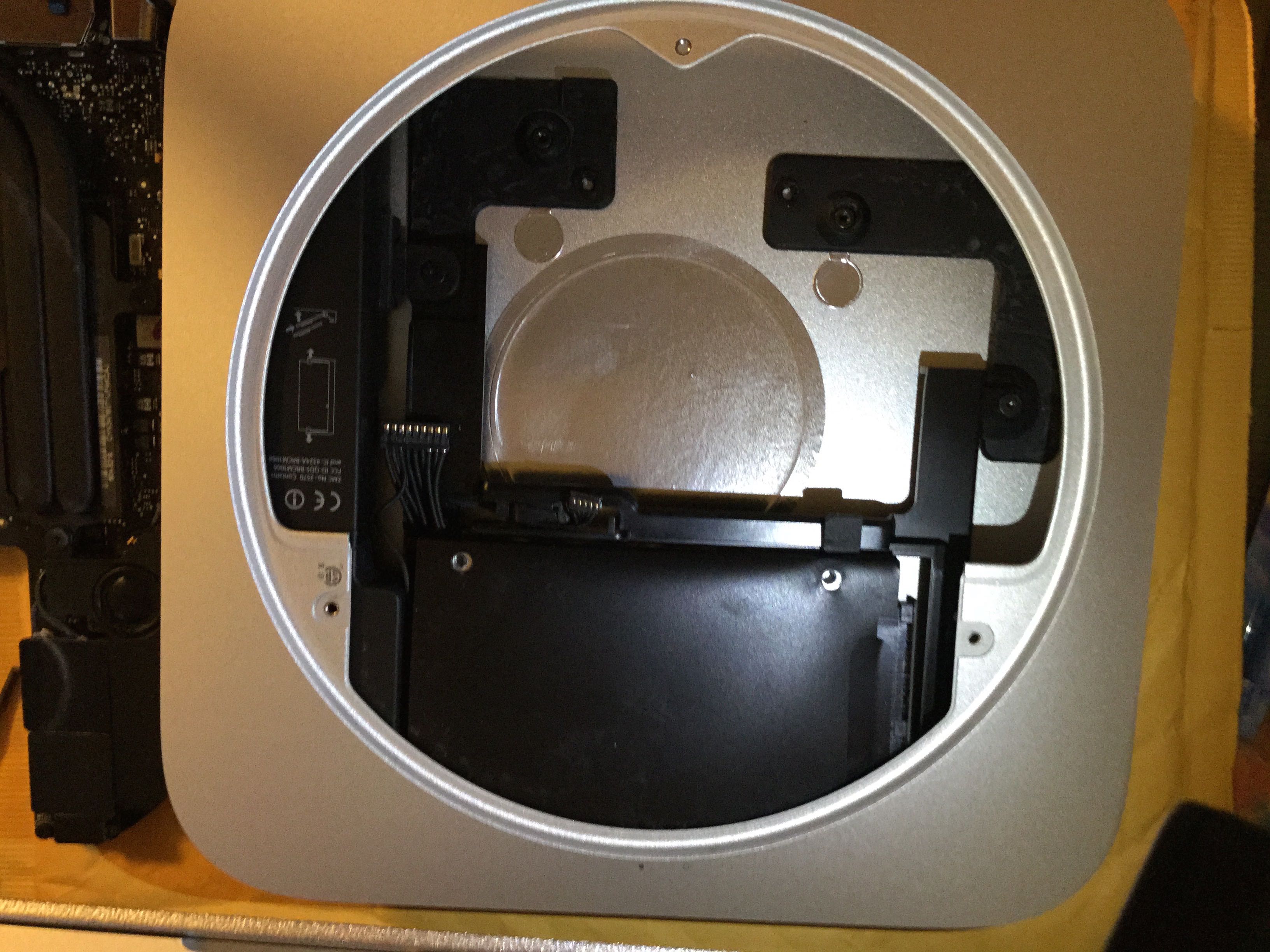

Here is what’s Left on the Mac Mini



IMG_0054

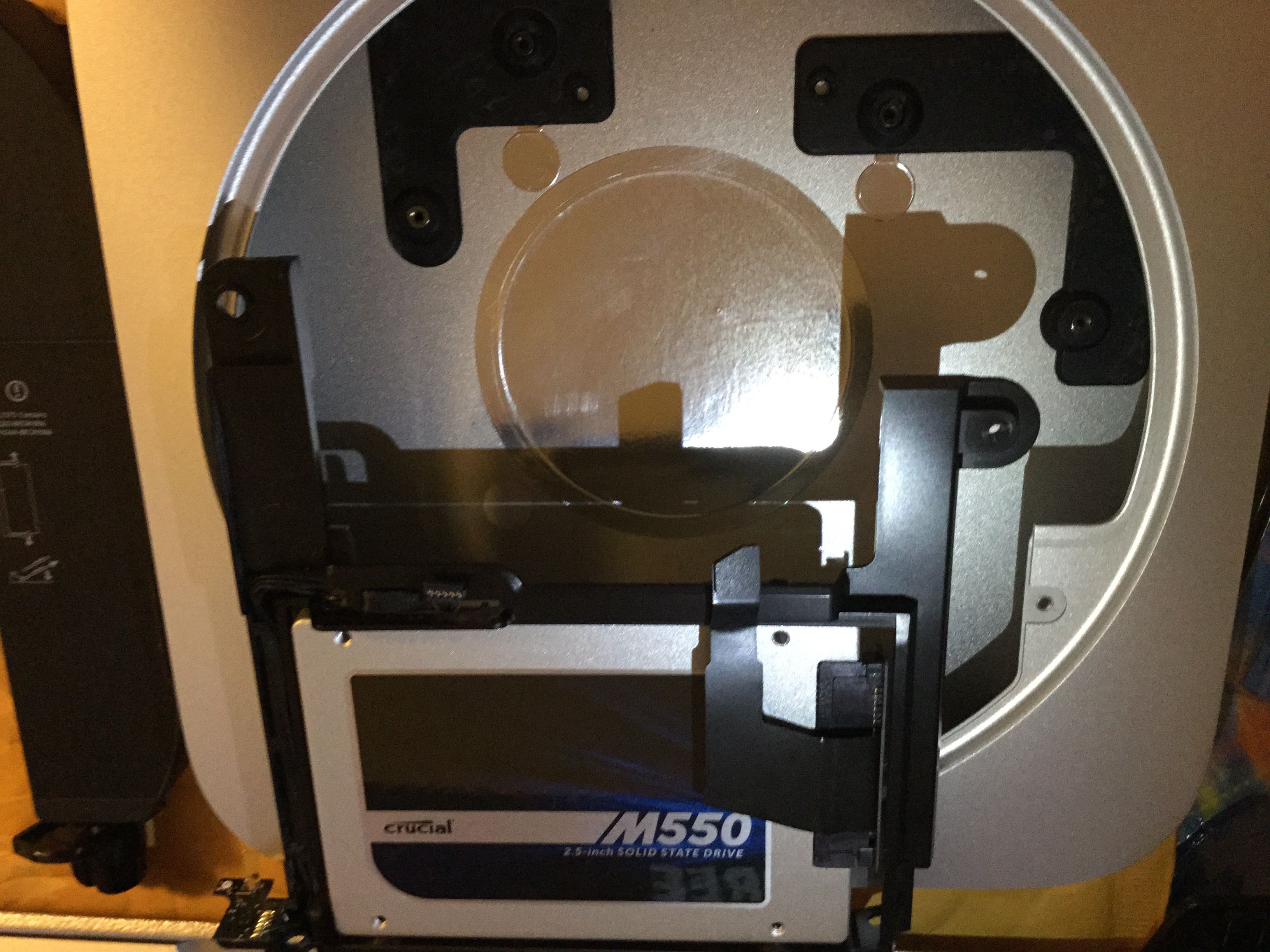

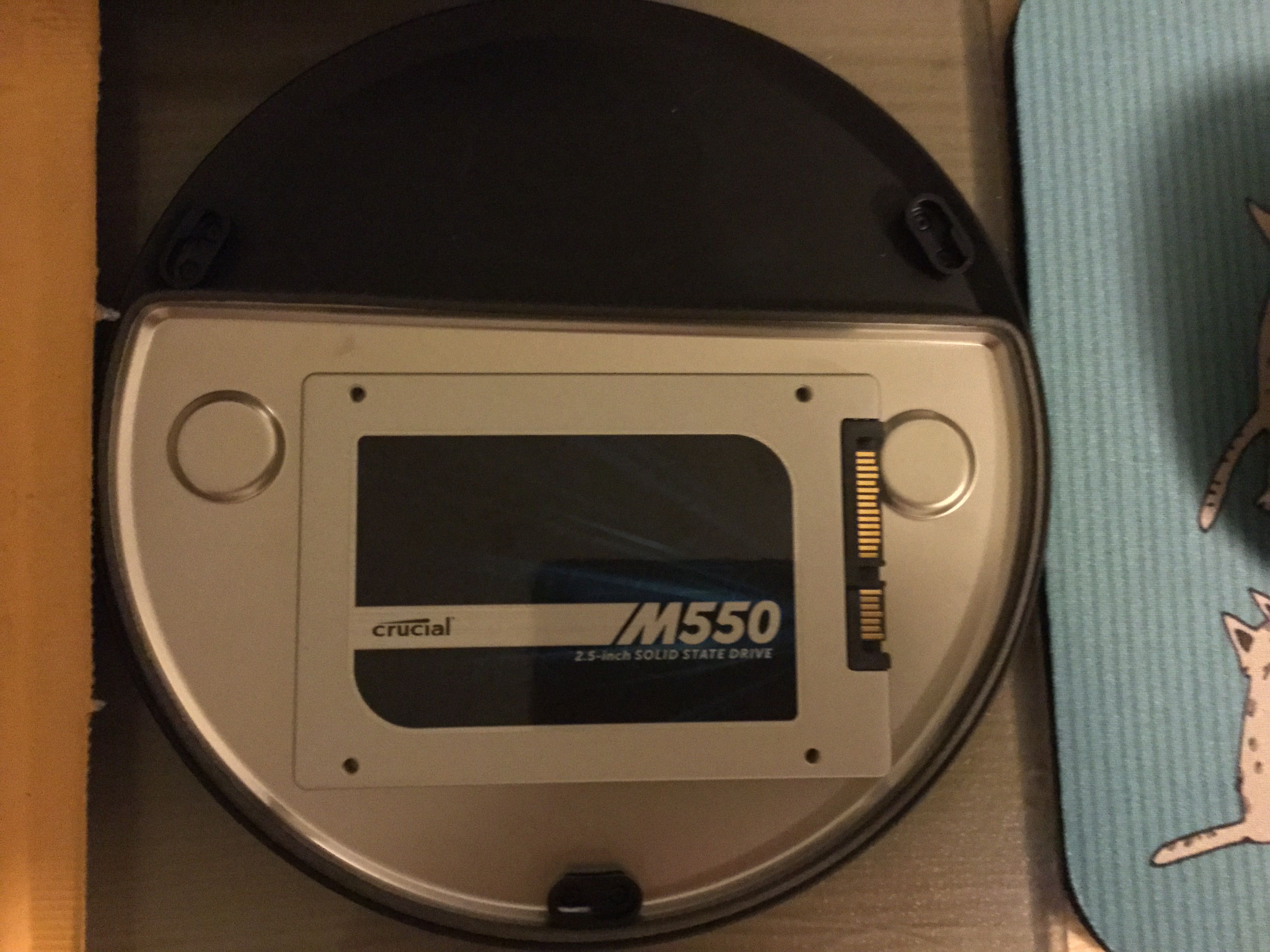

Put the SSD onto the Disk-Bracket



IMG_0055

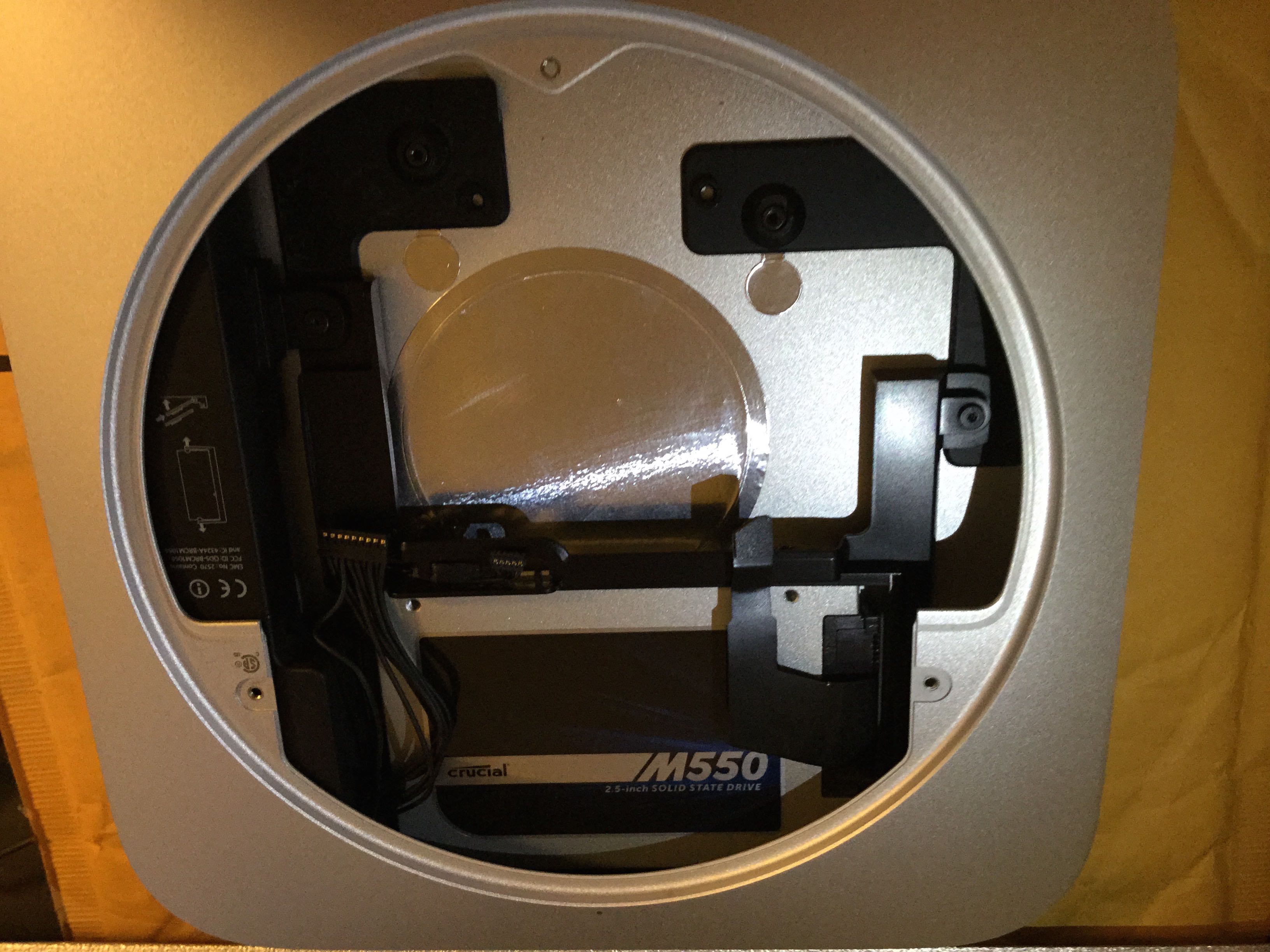

Slide the Disk-Bracket alone with attached SSD back to the Mac-mini



IMG_0051
Original 1TB HDD



IMG_0056

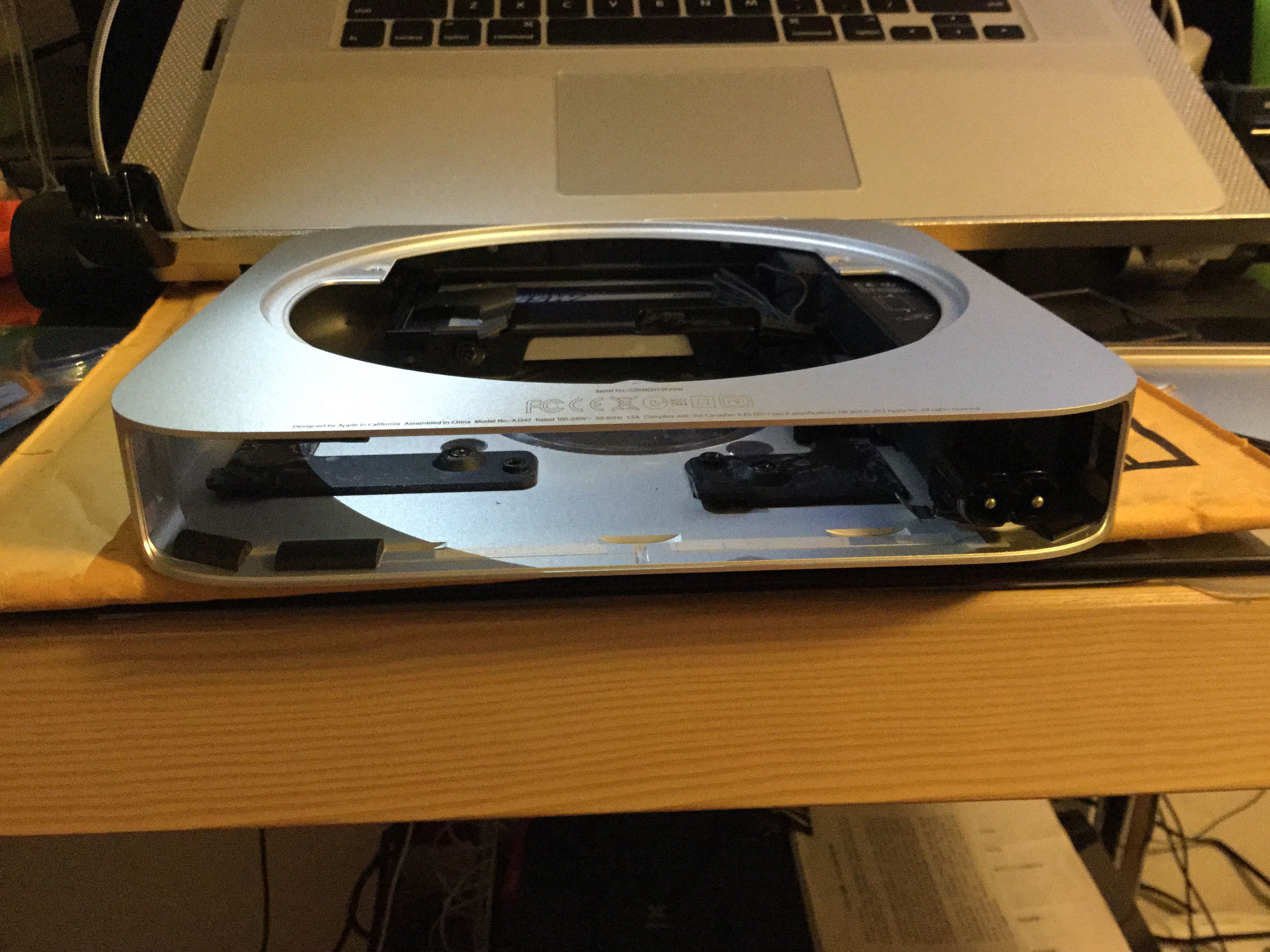

Empty Mac-mini



IMG_0057

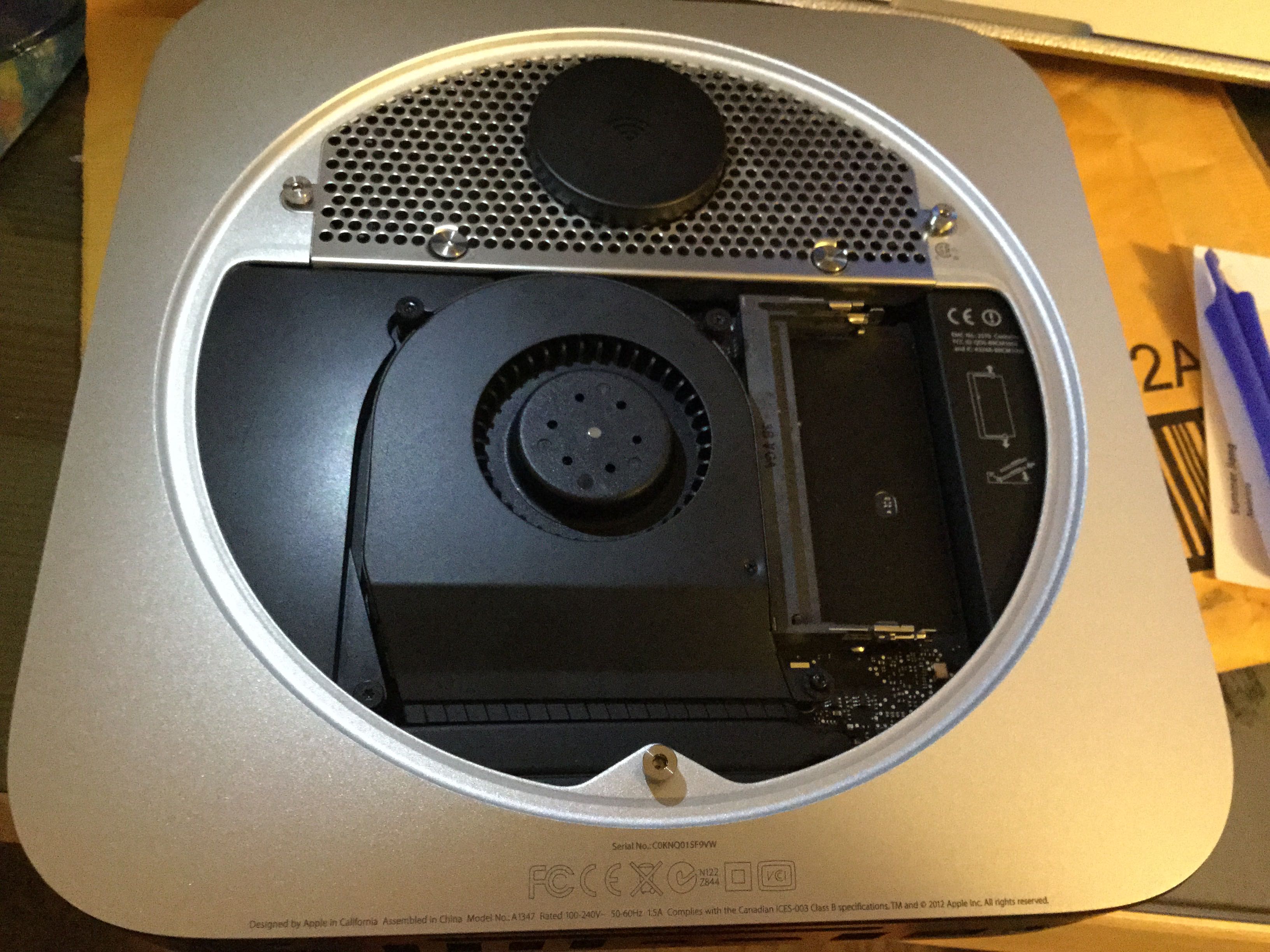

Put everything back on as it suppose to be



Macmini-upgrade
Done
